ARUM
A5 Pro.
Metal power. Prosthetic precision. Wet and dry milling in one machine, for labs that run all day.
One machine
Wet, dry, and everything you mill.

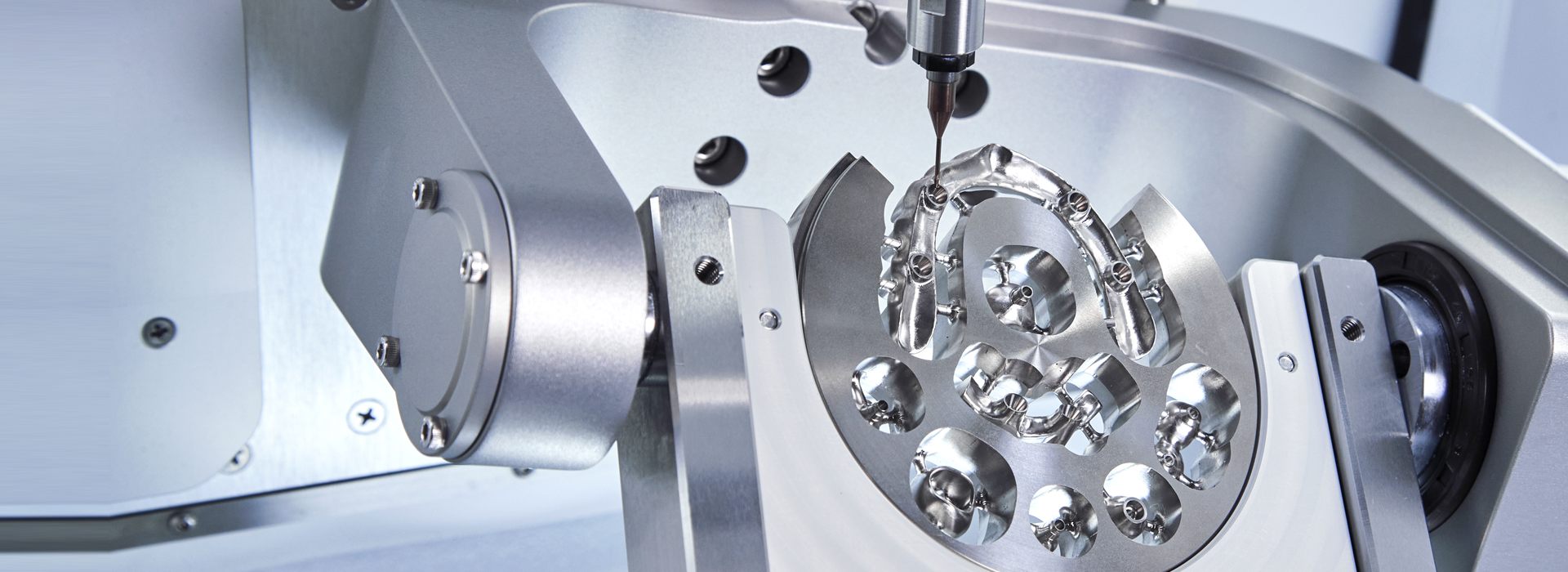

Titanium and cobalt-chrome discs. Premill blanks. Zirconia, glass ceramic, composite, PMMA, and wax. The A5 Pro switches between wet and dry milling in one machine, so one purchase covers the whole prosthetic range.
Five axes, servo drives, and an 80,000 rpm spindle keep the surface finish where a metal framework needs it.
Browse materials & parts
Premill workflows

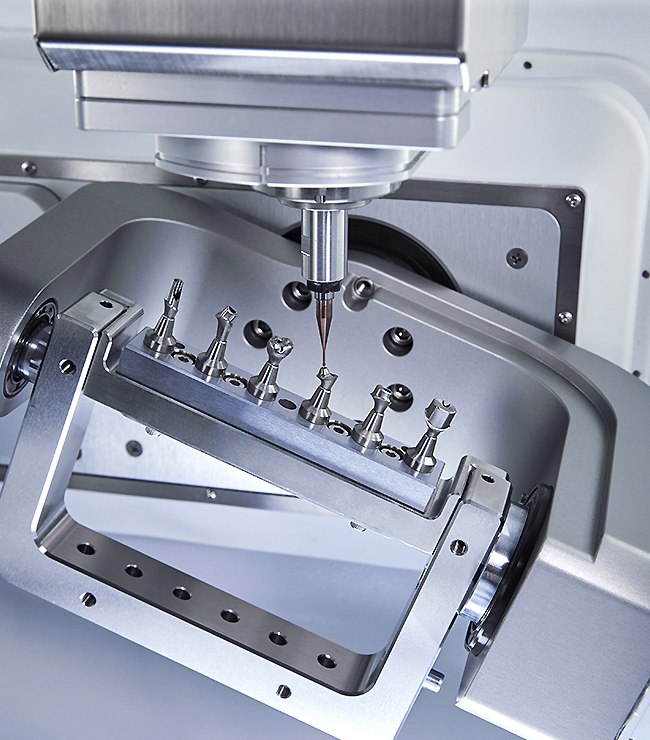

Abutments that find their own zero.
The A5 Pro detects premill coordinates automatically and removes the abutment connector during 90° milling. OCC Milling Auto Calibration, a world first from ARUM, corrects the reference coordinates for premilled blanks, and Disk Auto Calibration keeps disc work just as consistent.
Less setup at the machine. Fewer remakes on the bench.
Premill blanks & components

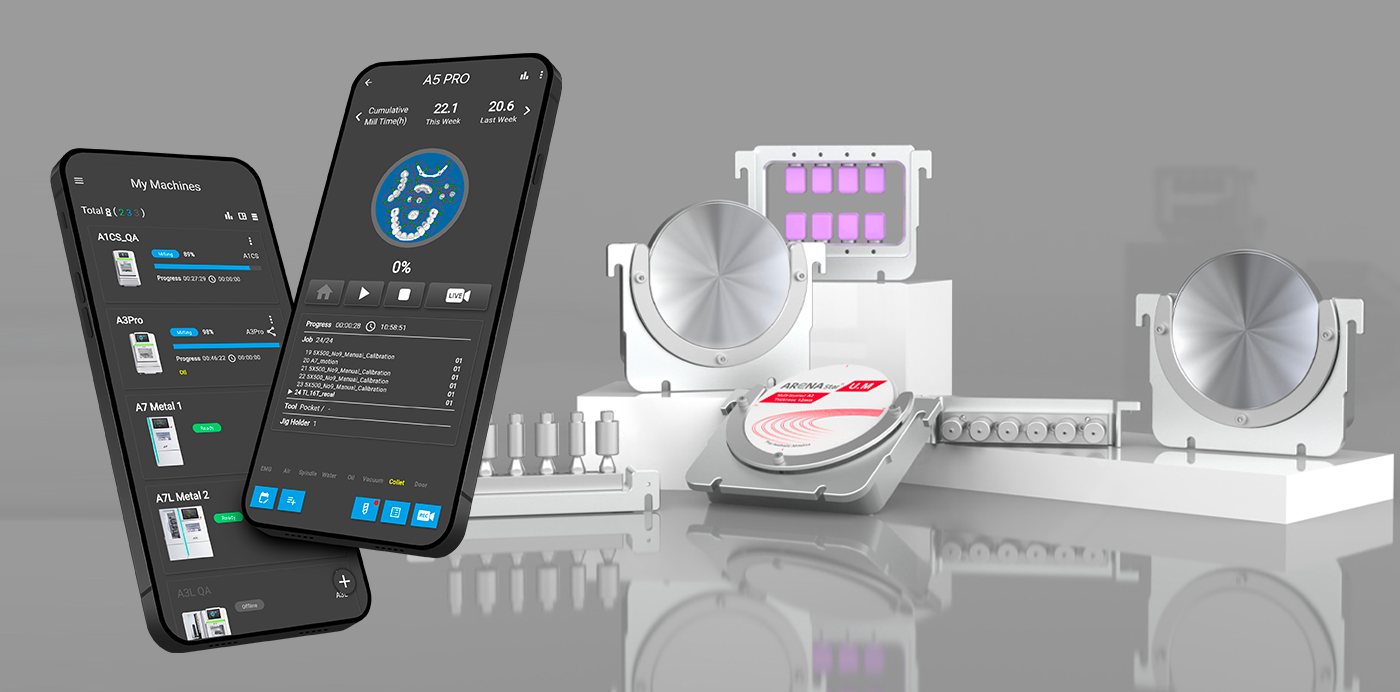

ARUM Connect
Every job, on your phone.
Machine status, milling progress, and production data live in one platform. Start a job, watch it run, and review the day from the bench or the road.
Real-time monitoring is built in, not bolted on.
What it makes.
From single units to full-arch metalwork, on the same machine.
Implant bars
Titanium and Co-Cr bars milled from disc, with the strength full-arch cases demand.
Screw-retained bridges
Full-contour and framework bridges with clean screw channels, straight off the mill.
Custom & hybrid abutments
Premill titanium blanks, with the connector handled automatically.
Crowns, copings & bridges
Zirconia, glass ceramic, PMMA, and metal, wet or dry.
Inlays & onlays
Glass ceramic and composite blocks from the cartridge holder.
Bite splints
PMMA and resin appliances from disc, in the same queue.
The numbers.
Specifications as published by ARUM. We confirm the configuration with your quote.
- Axes
- 5-axis
- Processing
- Wet and dry
- Spindle
- 80,000 rpm · 1.0 kW continuous, 1.37 kW peak
- Drive
- Servo motors
- Disc clamping
- Bolt clamping
- Holders
- Disc cartridge (C type), glass ceramic cartridge, premill blank cartridge
- Materials
- Titanium, Co-Cr, precious metal, zirconia, glass ceramic, composite, PMMA, resin, wax, premill blanks
- Calibration
- OCC Milling Auto Calibration, Disk Auto Calibration
- Remote monitoring
- ARUM Connect (IoT), real-time
- Footprint (W × D × H)
- 645 × 795 × 1,765 mm · 25.4 × 31.3 × 69.5 in
- Weight
- 186 kg machine + 70 kg table · 410 lb + 154 lb
Included, not extra.
A mill is only as good as the people standing behind it.
- Installation & training
- White-glove, included with purchase
- Service & maintenance
- Factory-trained technicians
- Financing & leasing
- Available. Start a conversation
Bring metal in-house.
Request a quote, or call and talk to someone who runs ARUM mills every day. We reply within one business day.
Need a loader and more spindle? Meet the A7 Explore the full ARUM lineup
